Weighing-type rainfall sensor

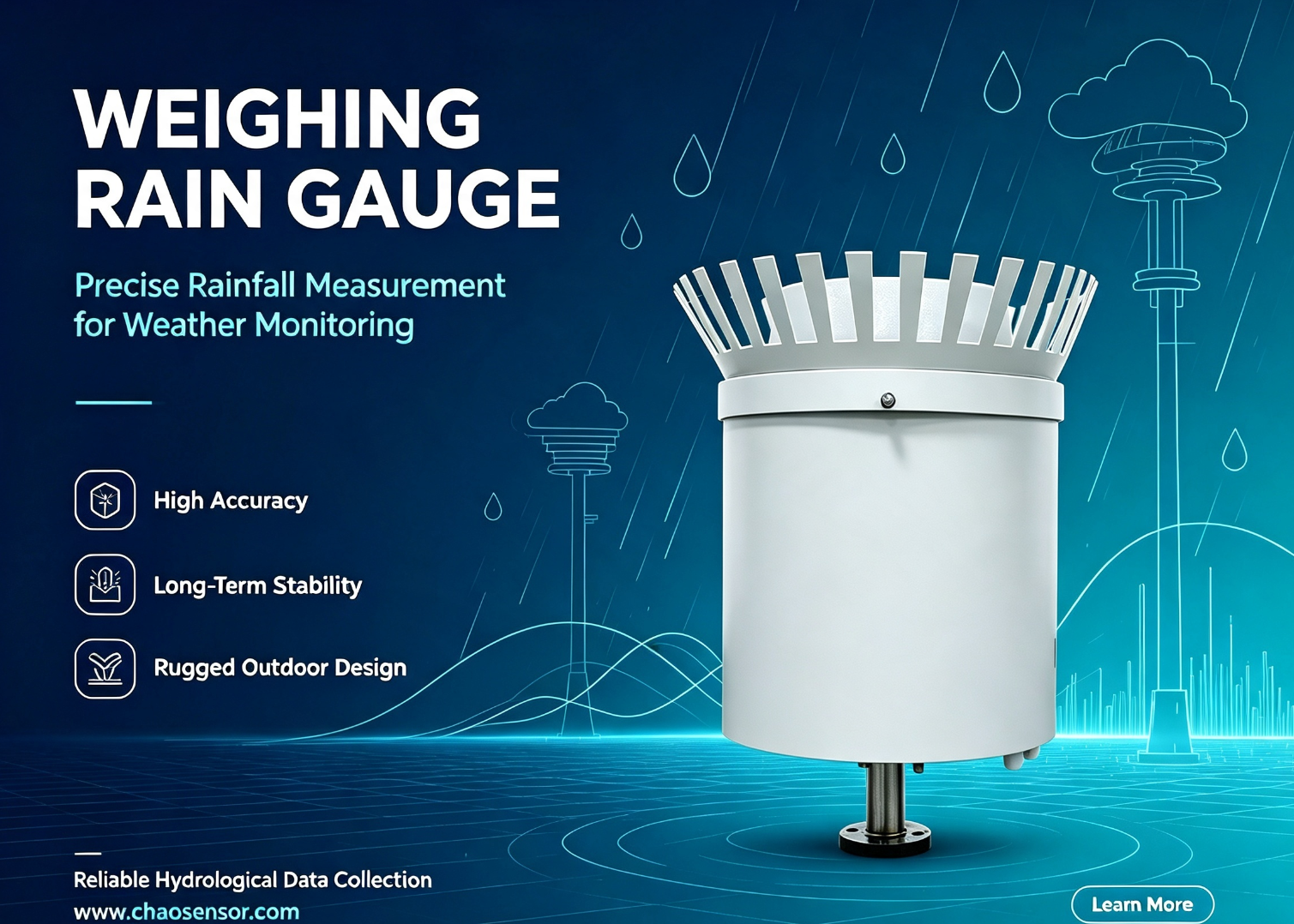

CC-M20HQ Digital High-Precision Weighing Rain and Snow Measurement Sensor

I. Product Overview

The CC-M20HQ type weighing rain and snow volume sensor is suitable for meteorological stations, hydrological stations, agriculture, forestry, national defense and other relevant departments to remotely measure liquid precipitation, precipitation intensity, and precipitation start and end time. It is used in automatic hydrological monitoring systems and automatic field monitoring stations for flood control, water supply scheduling, power station reservoir water level management, and other purposes, serving as a precipitation measurement sensor.

This sensor is manufactured, assembled, and calibrated in strict accordance with the national standards SL61-94 Hydrological Automatic Monitoring and Reporting System Specification, GB11831-89 Hydrological Monitoring and Reporting Device Remote Measurement Rain Gauge, and GB11832-89 Tipping Bucket Rain Gauge.

The CC-M20HQ weighing rain and snow gauge employs a high-precision pressure sensing element, enabling long-term, stable, and highly accurate automated measurement and storage of solid, liquid, and solid-liquid mixed precipitation and snowfall. Its standardized design, modular components, and castings ensure high reliability and low maintenance, making it suitable for all-weather rainfall and snowfall observation in harsh environments. Utilizing a weighing principle and an open sampling bucket design, it can accurately measure both low and high rainfall intensities, covering a range of 0–1800 mm /h , overcoming the narrow measurement range limitations of traditional tipping bucket or digital rain gauges.

II. Design Standards

1. QX/T 13-2002 《 SL2-1 Rain Sensor 》

2. GB/T 35221 General Rules for Ground Meteorological Observation

3. QX/T-2000 Ⅱ "Industry Standard for Automatic Weather Stations"

III. Product Features

01. Meets WMO 306 No. 8 rainfall measurement standards

02. Unaffected by external climate

03. The weighing method has high measurement accuracy, 10 times higher than that of the traditional tipping bucket rain gauge;

04. It can realize year-round automated observation of solid, liquid, and mixed precipitation;

05. No mechanical parts, easy to maintain;

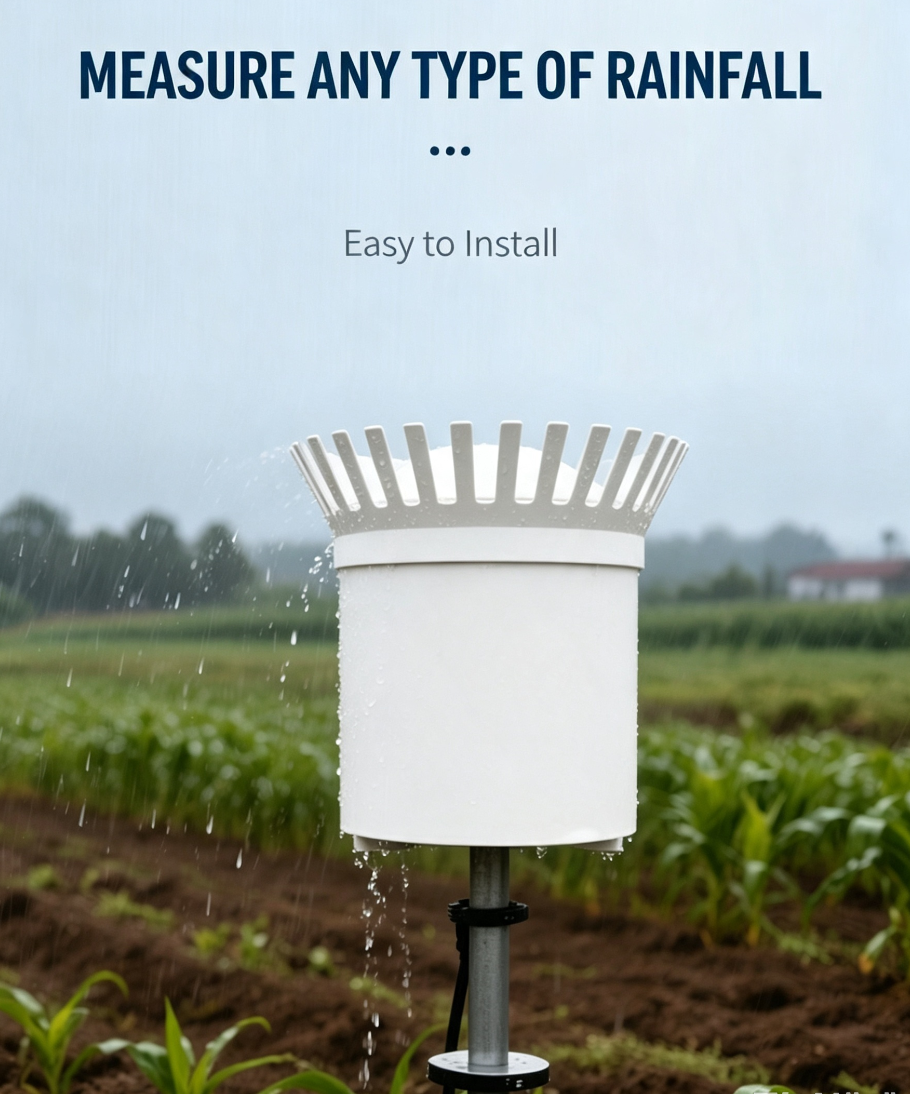

06. Capable of measuring any type of rainfall;

07. It can collect precipitation data for all four seasons;
